PIR Motion Sensors — Specs, Brands & Hong Kong Installation
Passive infrared and dual-technology motion detectors for rooms, corridors, and shop floors.
What this sensor does
PIR sensors detect body-heat movement across a coverage pattern. Dual-tech (PIR + microwave) models such as Bosch TriTech are used where air-conditioning, hanging displays, or glass shopfronts cause nuisance alarms on single-tech PIRs.
Swan CCTV specifies pet-immune models for flats with dogs or cats, and aims coverage across the room rather than straight at a swinging metal gate. Wireless Honeywell 5800PIR suits finished interiors; Bosch Blue Line is the wired staple on G-series panels; OPTEX FlipX / VX / BX cover indoor rooms and outdoor perimeters that a standard indoor PIR cannot.
- 12 m class coverage on typical wall PIRs
- Pet-immune options (model dependent)
- Wired Bosch, wireless Honeywell 5800, and OPTEX indoor / outdoor PIRs
- Walk-test commissioning on every job
Sensor brands & official websites
Brand names with manufacturer product pages. We specify models after a site survey and install them in Hong Kong.
Brand
Honeywell / Resideo
Wireless 5800-series PIRs, contacts, glass-break, smoke, shock, and flood sensors for VISTA and ProSeries panels.
Brand
Bosch
Blue Line and TriTech motion, magnetic contacts, glass-break, smoke, seismic, and zone water probes for G-series panels.
Brand
OPTEX
Japanese PIR specialists — FlipX indoor detectors and VX / BX / FTN outdoor PIRs for gardens, walls, and tight side alleys.
Brand comparison
Side-by-side specs for models Swan CCTV supplies and installs.
| Spec | Honeywell5800PIR-RES / 5800PIR-COM | BoschISC-BPR2-W12 / Blue Line Gen2 | BoschTriTech Motion Detectors | OPTEXFlipX Series | OPTEXVX SHIELD / VX INFINITY | OPTEXBX SHIELD / BX-80N | OPTEXFTN Compact Outdoor |
|---|---|---|---|---|---|---|---|
| Type | Wireless PIR | PIR motion | PIR + microwave | Indoor PIR / PIR + microwave (model dependent) | Outdoor PIR (SHIELD / INFINITY families) | Outdoor boundary / curtain PIR | Compact outdoor PIR |
| Coverage / range | Up to ~35–40 ft class (model dependent) | 12 m class (model dependent) | Multiple lens patterns | Wide or long pattern (lens flip) | 12 m (40 ft) × 90° | 24 m (12 m on each side) narrow pattern | Short-range outdoor (series dependent) |
| Power | Long-life lithium | 12 VDC nominal | — | 12 VDC nominal (wired models) | 12 VDC or battery wireless variants | 12 VDC (BX-80N class) / series variants | 12 VDC or battery variants |
| Best for | Interior motion detection | Interior rooms / corridors | High-traffic / challenging rooms | Rooms and corridors that need one head to cover two pattern shapes | Village-house gardens, podium decks, and rear yards | Wall-to-window curtain coverage on building perimeters | Narrow side lanes, A/C platforms, and compact yards |
Models we install
Open any model for full specifications, datasheets, and Hong Kong installation notes.
5800PIR-RES / 5800PIR-COM
Wireless PIR detectors for residential and commercial coverage.
- Type
- Wireless PIR
- Coverage
- Up to ~35–40 ft class (model dependent)
- Pet immunity
- Available on selected models
- Battery
- Long-life lithium
ISC-BPR2-W12 / Blue Line Gen2
Wall PIR with selectable coverage and pet-friendly options.
- Type
- PIR motion
- Coverage
- 12 m class (model dependent)
- Pet immunity
- Selectable models
- Installation
- Wall / corner
TriTech Motion Detectors
PIR + microwave dual technology for lower false alarms.
- Technology
- PIR + microwave
- False alarm resistance
- High
- Coverage options
- Multiple lens patterns
- Immunity
- White light / draft resistant designs

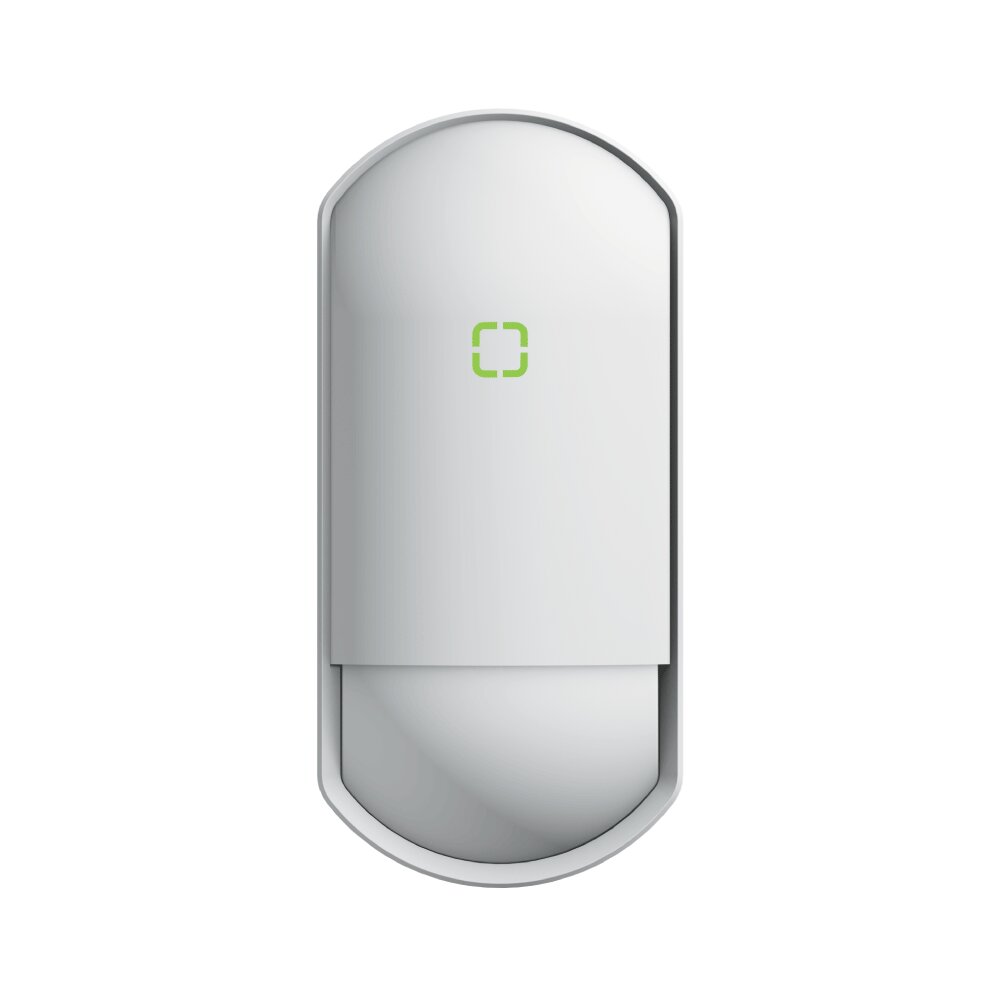

FlipX Series
Indoor PIR / dual-tech detector with a rotatable lens for wide or long coverage.
- Type
- Indoor PIR / PIR + microwave (model dependent)
- Coverage
- Wide or long pattern (lens flip)
- Mounting
- Wall; optional brackets
- Grade
- EN-grade options in the FlipX family

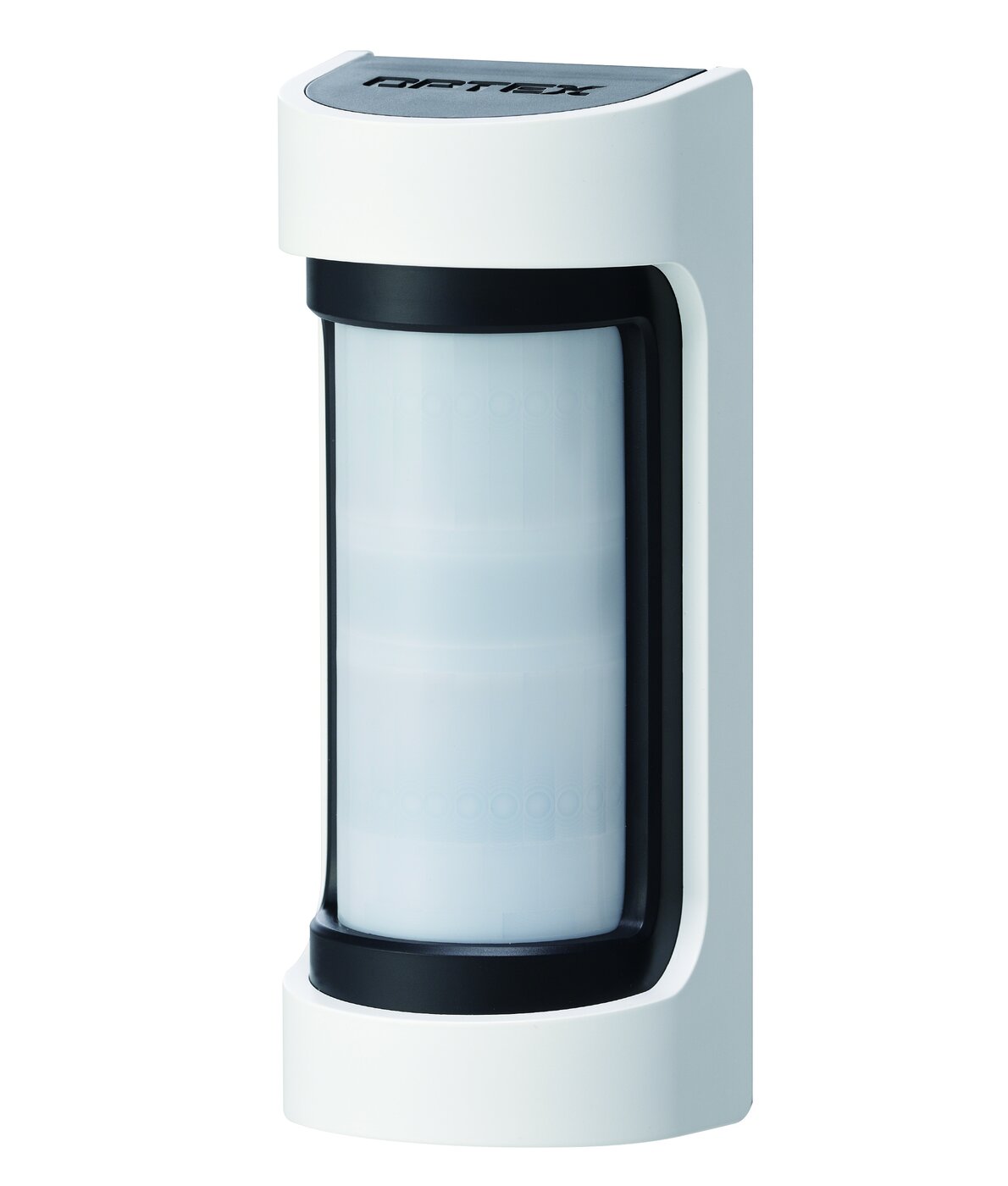

VX SHIELD / VX INFINITY
Wide-angle outdoor PIR, 12 m by 90°, for gardens, podiums, and building approaches.
- Type
- Outdoor PIR (SHIELD / INFINITY families)
- Coverage
- 12 m (40 ft) × 90°
- Mounting
- Wall, typically 0.8–1.2 m class
- Immunity
- Small-animal / weather-resistant designs

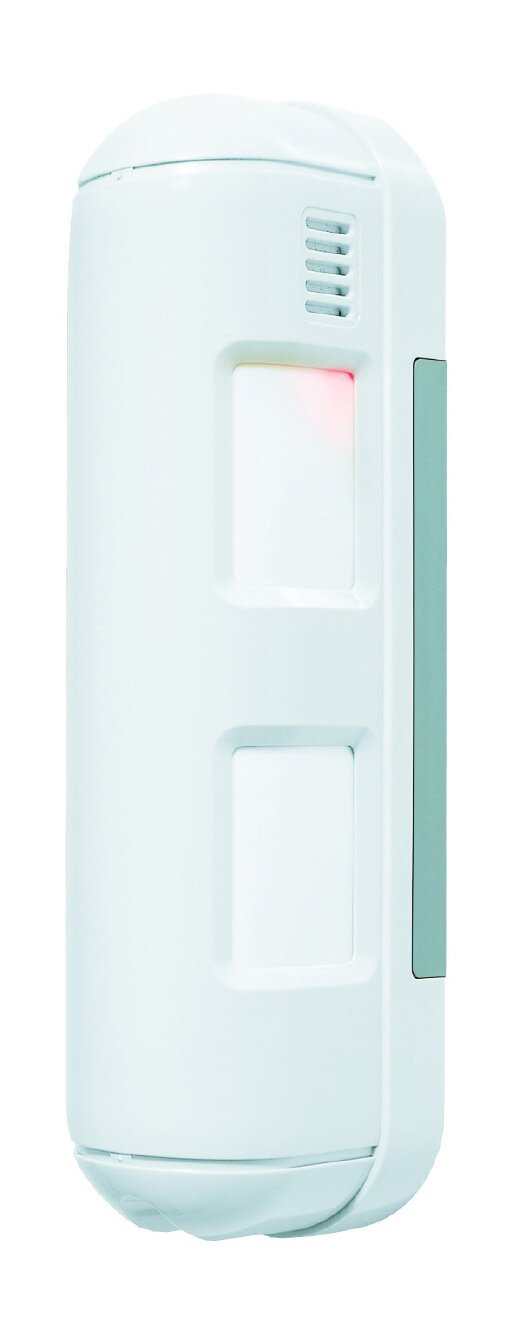

BX SHIELD / BX-80N
Narrow 24 m (12 m each side) outdoor PIR for walls, windows, and building faces.
- Type
- Outdoor boundary / curtain PIR
- Coverage
- 24 m (12 m on each side) narrow pattern
- Mounting
- Building face / boundary line
- Use case
- Windows, walls, and approach paths

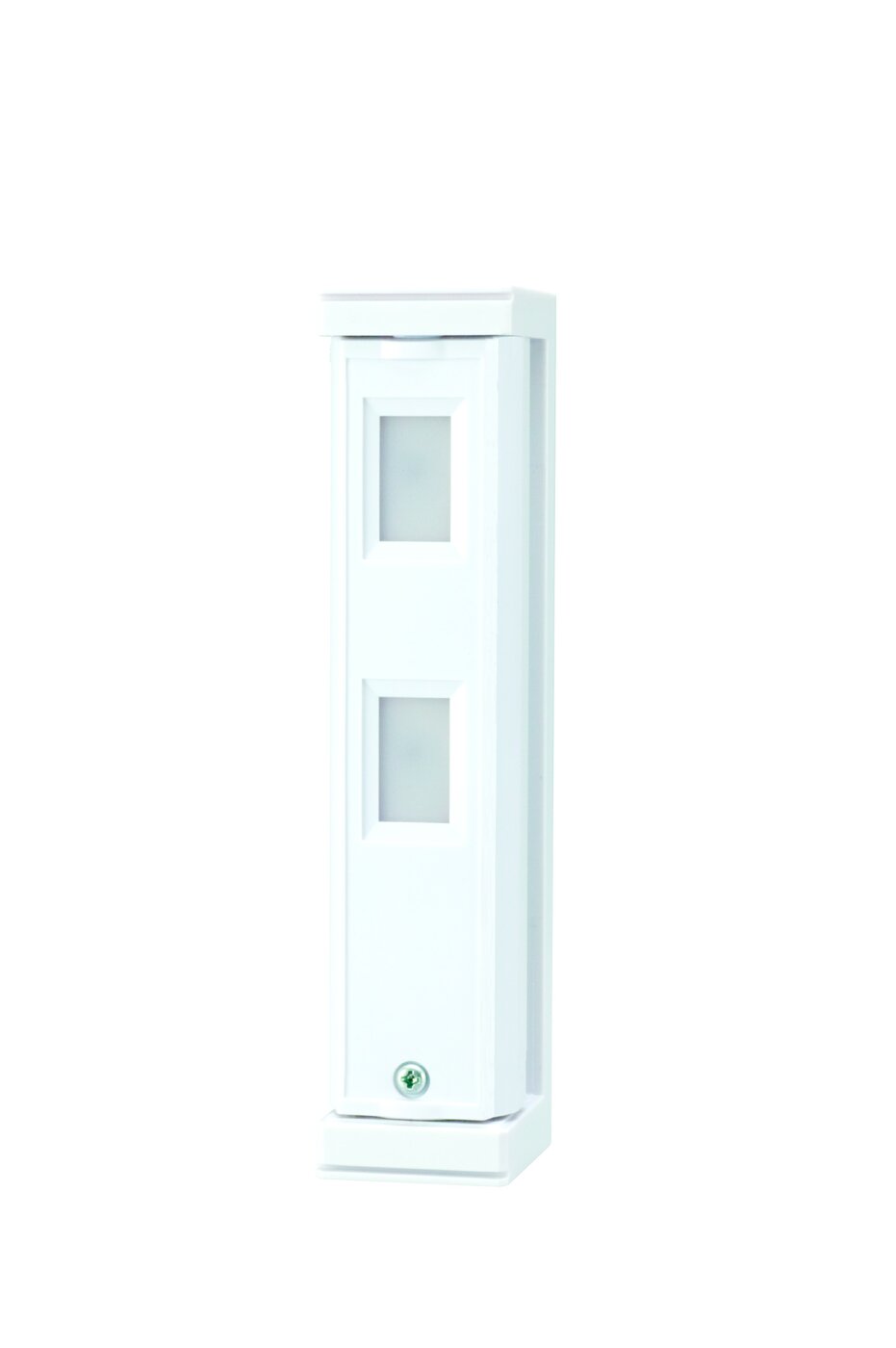

FTN Compact Outdoor
Short-range compact outdoor PIR for tight side alleys and areas with small animals.
- Type
- Compact outdoor PIR
- Coverage
- Short-range outdoor (series dependent)
- Immunity
- Designed around small-animal / environmental noise
- Housing
- Weatherproof compact body
Hong Kong / local context
Window-unit A/C and curtains are the usual false-alarm sources in Hong Kong flats. We aim the detector across the room and keep it off pedestal-fan paths.
Narrow corridors need a pattern that does not look straight at the main door swing.
Other sensor types
Complete coverage usually mixes several detector types on one panel.
Door & Window Contacts
Magnetic reed contacts for metal gates, aluminium windows, shutters, and internal doors.
View modelsGlass Break Detectors
Acoustic detectors that listen for breaking glass across a room — useful for shopfronts and glazed offices.
View modelsSmoke & Heat Detectors
Photoelectric smoke and heat detectors that report fire warning on the same alarm panel as intrusion.
View modelsVibration & Shock Sensors
Shock and seismic detectors for windows, walls, safes, and forced-entry on solid structures.
View modelsFlood & Temperature Sensors
Water-leak probes and temperature sensors for kitchens, plant rooms, and compact IT cupboards.
View models
