Nitro
USP SecNET card access and YTMS Pro time attendance
Nitro Solution (nitrosec.com) builds card door-access controllers and time-attendance software for sites that want stable Wiegand hardware rather than face terminals. Swan CCTV supplies and installs USP SecNET with the NAC8000N network controller, YTMS Pro attendance reports, NAC3000B standalone doors and NR-series readers. Hong Kong catalogues also list NAC3550N (paired with the NAC8000N) and the NAC3001B-EM control module — we confirm those two against the current datasheet before quoting capacity.

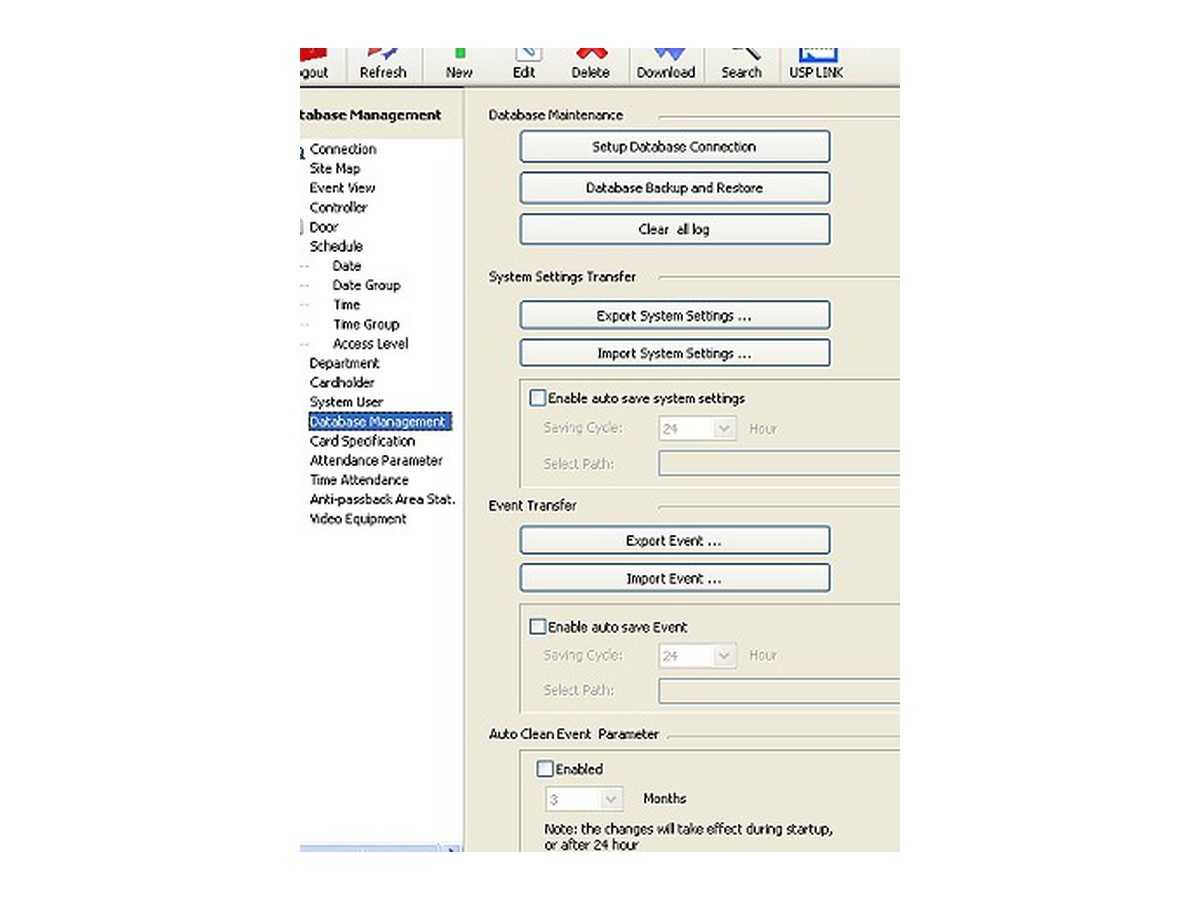

USP SecNET
Door-access and time-attendance software for Nitro NAC controllers.
Best for: Offices that want cards and attendance on one PC
- Role
- Door access and time-attendance management software
- Controllers
- NAC8000N — up to 64 sets on one system
- Cardholders
- 2,000 per NAC8000N
- Door rules
- Anti-passback, auto open, remote open, multi-card

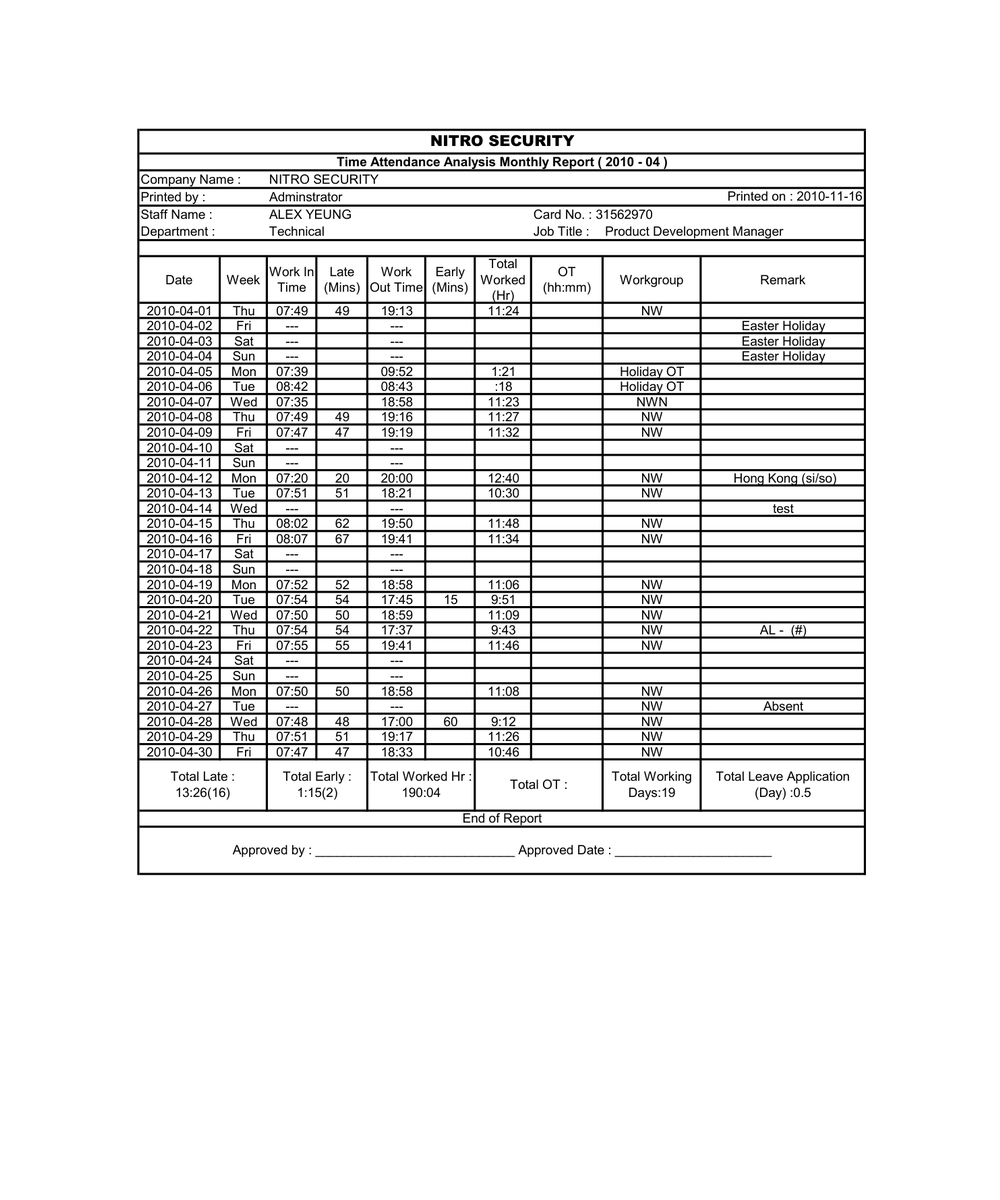

YTMS Pro
Attendance reports that sit beside USP SecNET door control.
Best for: Factories and offices that need shift reports
- Role
- Advanced time-attendance management
- Reports
- Sample reports published by Nitro
- Access host
- USP SecNET
- Hardware
- NAC controllers and Wiegand readers

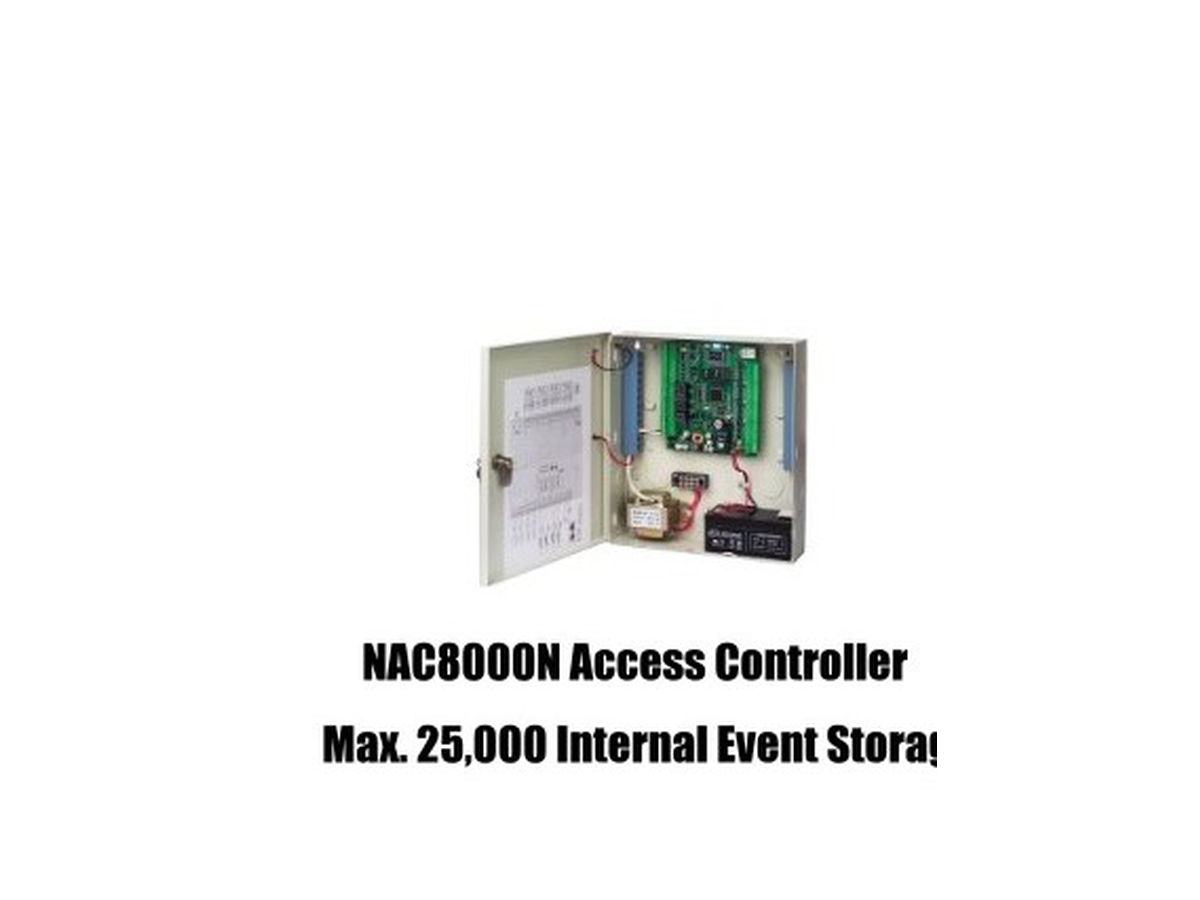

NAC8000N
Four-reader network controller — 2,000 cardholders and up to 64 panels on SecNET.
Best for: Multi-reader floors and multi-controller sites
- Readers
- 4 inputs
- Controllers per system
- Up to 64
- Cardholders
- 2,000
- Wiegand
- Auto-detect 26 / 32 / 34 / 64 / 66 bit
NAC3000B-3A
Standalone Nitro controller for one door that does not need a SecNET PC.
Best for: Single shop or unit doors
- Type
- Standalone door controller
- Series
- NAC3000B-3A
- Networking
- Operates without USP SecNET
- Typical door count
- Single door

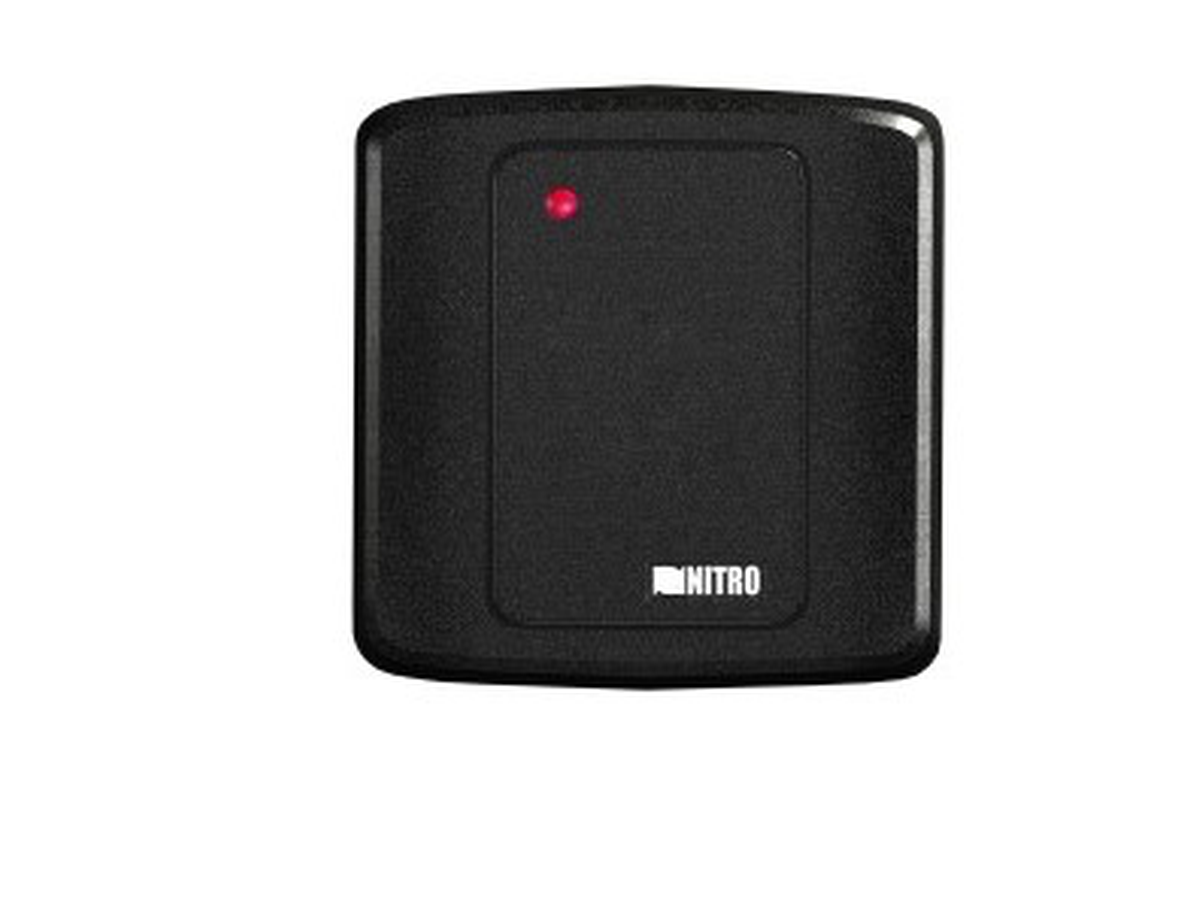

NR-CRD
NR-series smart card reader for Nitro NAC doors.
Best for: Entry readers on SecNET doors
- Series
- NR smart card reader
- Model
- NR-CRD
- Host
- Nitro NAC controllers
- Interface
- Wiegand to the NAC panel
Nitro door-control comparison
Quick side-by-side view to help choose the right model family for your site.
| Spec | USP SecNET | YTMS Pro | NAC8000N | NAC3000B-3A | NR-CRD |
|---|---|---|---|---|---|
| Type | Access software | Attendance software | 4-reader network panel | Standalone controller | Smart card reader |
| Cardholders | Via NAC8000N | Reports only | 2,000 | Local on the panel | — |
| Doors | Up to 64 controllers | — | 4 readers | Single door | 1 reader |
| Wiegand | Host | — | 26/32/34/64/66 auto | Controller-dependent | To the NAC panel |
| Best for | Networked site | Shift reports | Multi-reader floor | One shop door | Reader head |
