Soyal
Taiwan card/PIN controllers — the Hong Kong 工廈 door-access workhorse
Soyal (碩陽 / 茂旭) AR-series controllers are the systems already running in many Hong Kong industrial buildings and SME offices. Swan CCTV installs new AR-721H / AR-725-E / AR-837-E doors, expands existing RS-485 buses, and commissions 701ServerSQL / 701ClientSQL. Parts, EM/Mifare cards and AR-727-CM converters are locally available, so a failed reader can be swapped without ripping out the whole site.

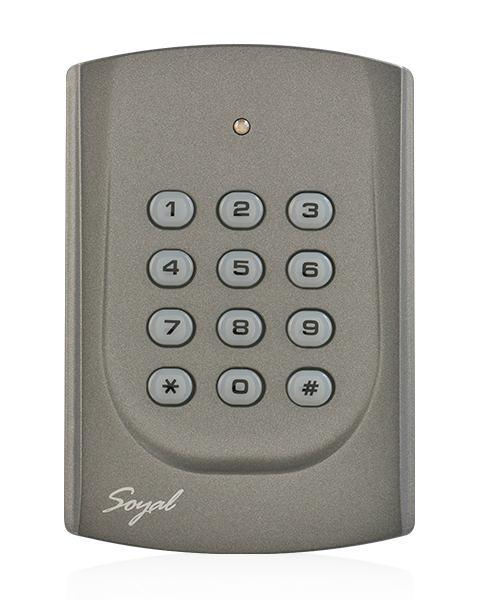

AR-721H
Classic Soyal all-in-one controller/reader for one door — 1,024 users, RS-485 to 701.
Best for: Single shop / unit doors
- RFID
- 125 kHz EM and/or 13.56 MHz Mifare (ISO 14443A)
- Users
- 1,024 (M4/M8 network modes); lift 32 floors
- Event log
- 1,100 (stored in flash)
- Read range
- 10–18 cm (125 kHz) / 3–8 cm (13.56 MHz)

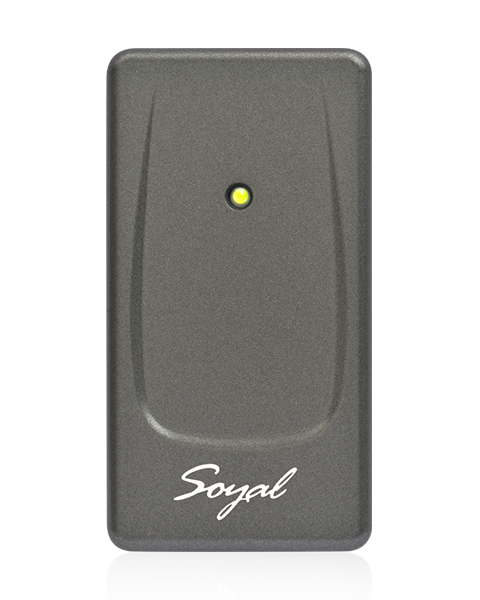

AR-723-U
Palm-size proximity reader for exit, anti-passback or tight door frames.
Best for: Exit readers / slim frames
- Users / events
- 1,024 users / 1,100 events (controller mode)
- RFID
- 125 kHz or 13.56 MHz SKUs
- Size
- 81 × 43 × 18 mm; ~40 g
- Protection
- IP56 / IP66 (epoxy potting option)

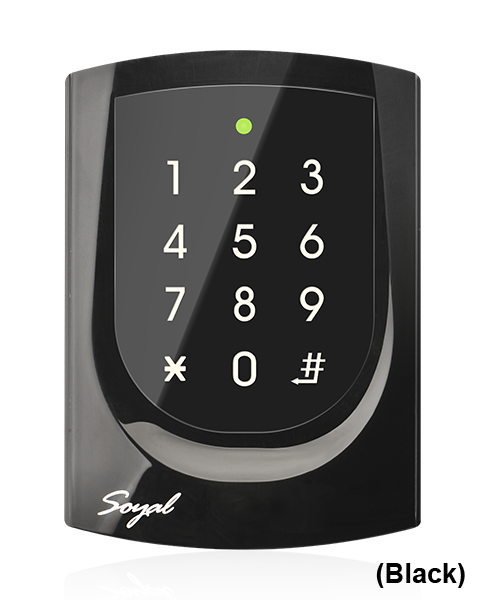

AR-725-E
Illuminated touch-panel controller with TCP/IP, 16,000 users and two-door I/O.
Best for: Reception / two-door units
- Users / events
- 16,000 users; 32,000 event logs
- Doors
- 2 (second door via Wiegand + extra egress/contact/lock)
- RFID
- 125 kHz and 13.56 MHz simultaneously (dual-band SKUs)
- Network
- RS-485 9600 + TCP/IP (by order); HTTP web server on E-series

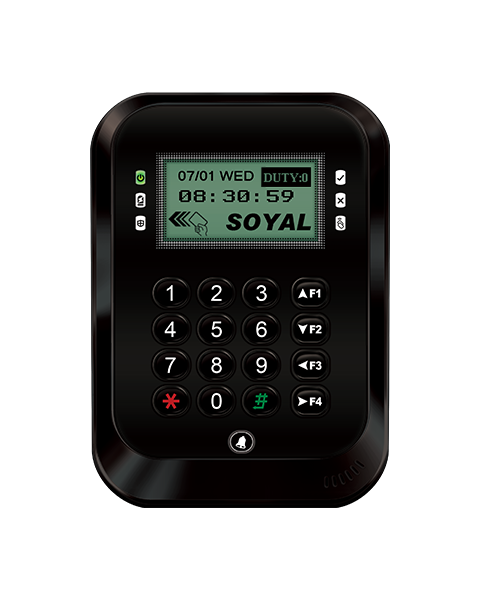

AR-837-E
IP65 two-door network controller with built-in HTTP server — 16,000 users.
Best for: Outdoor / car-park side doors
- Users
- 16,000 default / 32,000 / 65,000 (floor-count trade-off)
- Event log
- 32,000 (offline cache while LAN is down)
- Doors
- 2 sets of egress, door status, lock relay + WG reader
- Lift
- 64 / 32 / 16 floors depending on user-capacity SKU

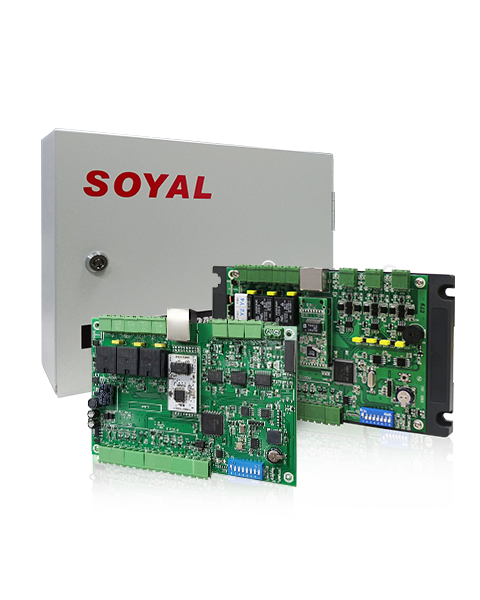

AR-716-E16
Indoor 16-door IP panel — two RS-485 reader buses plus two Wiegand ports.
Best for: Multi-door offices / buildings
- Doors
- 16 (8 readers × 2 RS-485 channels; WG0/WG1 share door 1–2)
- Users
- 16,000 default / 32,000 / 65,000
- Event log
- 32,000
- CPU
- ARM 32-bit 72 MHz, 512 KB flash

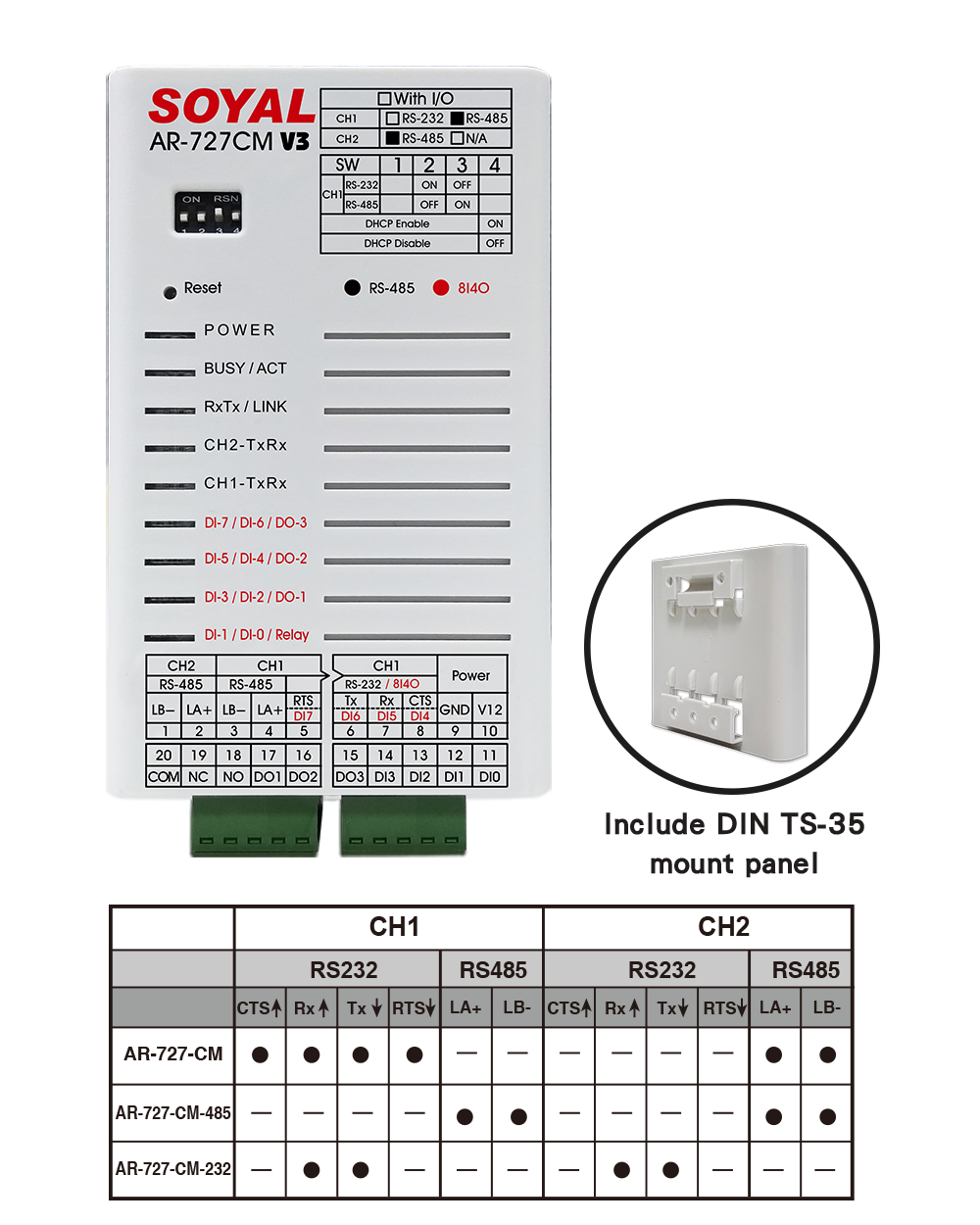

AR-727-CM
Two-channel converter so existing 721H / 323 buses can join 701ServerSQL over LAN.
Best for: Upgrading old Soyal RS-485 sites
- Channels
- CH1 + CH2 independent RS-485
- Default ports
- CH1 TCP server 1621; CH2 UDP 1623 (set CH2 to TCP server if used)
- Firmware
- 5.03 or later recommended (current 5.05 class)
- Software
- 701ServerSQL / 701ClientSQL 10V5+
Soyal controller comparison
Quick side-by-side view to help choose the right model family for your site.
| Spec | AR-721H | AR-725-E | AR-837-E | AR-716-E16 |
|---|---|---|---|---|
| Doors | 1 (+ WG exit) | 2 | 2 | 16 |
| Users | 1,024 | 16,000 | 16,000–65,000 | 16,000–65,000 |
| Event log | 1,100 | 32,000 | 32,000 | 32,000 |
| Network | RS-485 | RS-485 / TCP/IP | RS-485 + Ethernet IP65 | Ethernet + 2× RS-485 |
| Best for | Single unit door | Reception | Outdoor door | Whole floor |
